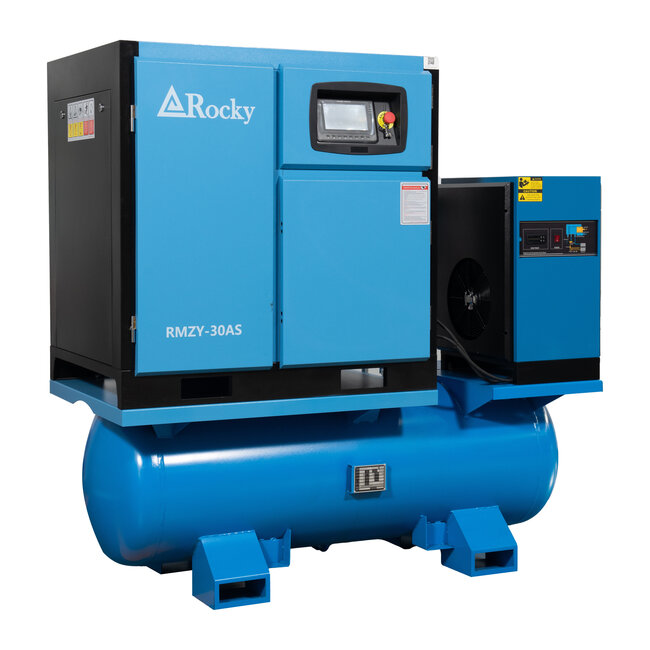

The complete screw compressor system 18.5 kW VSD – oil-free compressed air is a powerful and efficient all-in-one solution for businesses with substantial compressed air demand. Designed for professional and industrial use, this system integrates all essential components into a single, ready-to-operate unit.
This configuration is originally based on the 22 kW (30 HP) platform, but is software-configured to 18.5 kW (25 HP). As a result, users benefit from the robustness and capacity reserve of a higher-rated compressor while operating at a power level perfectly matched to current requirements. This makes the system an excellent future-proof investment.
The integrated variable speed drive (VSD) screw compressor continuously adjusts speed to match actual air demand, ensuring high energy efficiency, reduced wear and stable pressure control. The maximum operating pressure is 10 bar, with an air delivery of 2,500 l/min, measured at this maximum pressure. CompressorOnline.nl always specifies the actual air delivery at maximum pressure, ensuring transparent and reliable performance data.
A key advantage of this configuration is its upgrade potential: if compressed air demand increases in the future, the system can be software-upgraded at no additional cost to the full 22 kW (30 HP) output. In this configuration, the compressor delivers 3,000 l/min at 10 bar, without any mechanical modifications.
Thanks to the integrated air receiver, refrigerated dryer and high-quality filtration, this system delivers oil-free compressed air suitable for demanding industrial applications. Although the compressor itself is oil-lubricated, the combination of drying and filtration effectively removes oil from the compressed air.
The complete compressor system operates on 400V three-phase power. Please note: the integrated refrigerated dryer requires a separate 230V power supply, in addition to the compressor connection. The all-in-one design ensures easy installation and fast commissioning in workshops, production facilities and industrial environments.
