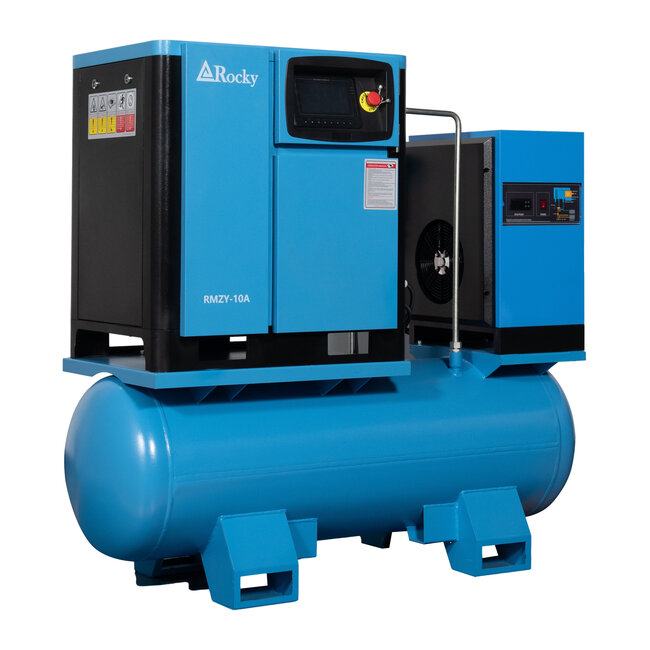

The complete screw compressor system 5.5 kW VSD – oil-free compressed air is a compact and efficient all-in-one solution for businesses requiring reliable, high-quality compressed air. Designed for professional and industrial use, this system integrates all essential components into a single, ready-to-operate unit.
A key advantage of this version is the variable speed drive (VSD), allowing the system to be software-configured as a 5.5 kW unit, while the underlying technology is identical to the 7.5 kW model. This provides maximum flexibility: if the available power supply does not allow for 7.5 kW operation, the system can be operated as a 5.5 kW screw compressor. Should circumstances change, the unit can easily be reset to 7.5 kW, without any mechanical modifications. This makes the system particularly attractive for installations with limited electrical capacity or future expansion plans.
The variable speed control continuously adapts the compressor speed to the actual air demand, resulting in lower energy consumption, reduced wear and stable pressure control. The maximum operating pressure is 10 bar, with an air delivery of 1,000 l/min, measured at this maximum pressure. Unlike many suppliers who state capacities at lower pressures, CompressorOnline.nl always specifies the actual air delivery at maximum pressure.
Thanks to the integrated 400-litre air receiver, refrigerated dryer and high-quality filtration, this system delivers oil-free compressed air suitable for a wide range of industrial applications. Although the compressor itself is oil-lubricated, the combination of drying and filtration effectively removes oil from the compressed air, making the system ideal for applications requiring clean and dry air.
The complete compressor system operates on 400V three-phase power. Please note: the integrated refrigerated dryer requires a separate 230V power supply, in addition to the compressor connection. The all-in-one design ensures easy installation and fast commissioning in workshops, production facilities and industrial environments.
